3参数说明：
功率：120W (5IK120RGU-CF 5IK120GU-CF)        电压：单相110V/220V
电流：0.38A至4.9A                          频率：50Hz/60Hz
转速：1至2800 RPM 可减速可调速电机        减速比：1:3至1:750
转向:CW(正转)/CCW(反转)                    绝缘等级:B级
耐温:-10至130℃                            工作制:S1 S2 S3
防护等级:IP44（可定制IP55）                 噪音:50dB以下
安装方式：立式/卧式                         功能：无级调速，电磁刹车，正反转

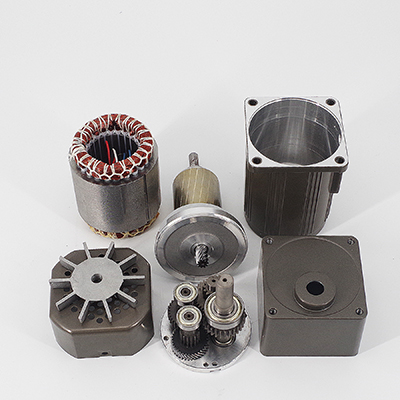

电机特点：
优质纯铜线圈
40Cr合金钢齿轮高温氮化加硬
407硅钢片，铁损更低，磁通量更大
ADC12全铝制电机外壳
德国原装进口低温油脂
全铝制散热风扇
散热条使用定子线圈，电机工作时产生的热量更易散发
高速冲床定子
转子使用金属镶件加入模具，注入BMC材料加热至180℃高温成型
电机优点
超强扭矩    超低噪音     超长寿命     高可靠性
启动平稳    安装方便     节省空间     免维护
售后服务：
7天包退    15天包换    2年包修    5年维护
注意事项：
1.在电机出轴上安装连轴器或皮带轮等传动机构时，不可直接在出轴上以工具敲击安装。
2.与其他机器连接时，请先确认好旋转方向。
3.为避免安全隐患，请接地线使用。
4.带接线盒电机，请不要在接线盒盖打开的状态下运转电机。
5.安装接线时，请先确认好电压务必控制在额定范围内，以免因使用错误电压而导致电机线圈烧坏及触电。
6.请勿在通电状态下进行移动，安装，接线和检查作业。请切断电源后再进行作业，否则可能引起触电。


电机型号：

5IK120A-C	5RK120A-C	5IK120RGU-CF	5RK120GU-C
5IK120RA-C	5RK120RA-C	5IK120RGU-CF	5RK120RGU-CF

减速机型号：

5GU3K	5GU5K	5GU7.5K	5GU9K	5GU10K	5GU12.5K	5GU15K	5GU18K
5GU20K	5GU25K	5GU30K	5GU36K	5GU40K	5GU50K	5GU60K	5GU75K
5GU90K	5GU100K	5GU120K	5GU150K	5GU180K	5GU200K	5GU250K	5GU300K

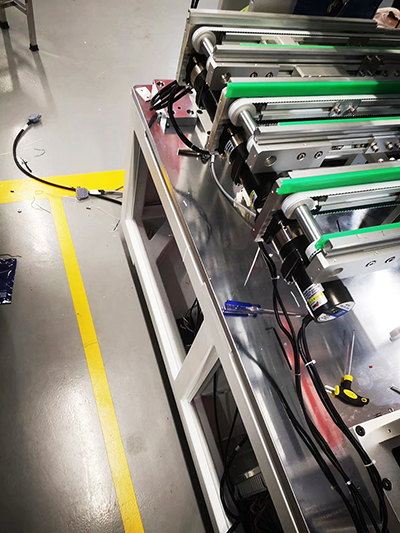

应用范围：
输送带，流水线，磁性分离器,传送带,巴氏灭菌机,包装印刷机,玻璃反应釜,剥皮机,剥线机,贴片机,口罩机，防护服设备等自动化



120W光轴电机型号汇总
5IK120A-AF，5IK120A-CF，5IK120A-SF，5IK120A-S3F，5IK120A-D，5IK120A-T，5IK120A-T3，5IK120RA-CF，5IK120A-CMF，5IK120RA-CMF，5IK120GU-AF，5IK120GU-CF，5IK120RGU-CF，5IK120GU-CMF，5IK120RGU-CMF，5RK120GU-CF，5RK6RN-CF，5RK120GU-AF，5RK120RN-AF，5IK120GU-SF
5IK120GU-S3F，5IK120GU-YF，5IK120GU-SMF，5IK120GU-S3MF，5IK120GU-YMF，
120W减速电机型号汇总：
5IK120GU-CF+5GU3K，5IK120GU-CF+5GU5K，5IK120GU-CF+5GU7.5K，5IK120GU-CF+5GU9K，5IK120GU-CF+5GU10K，5IK120GU-CF+5GU12.5K，5IK120GU-CF+5GU15K，5IK120GU-CF+5GU18K，5IK120GU-CF+5GU20K，5IK120GU-CF+5GU25K，5IK120GU-CF+5GU30K，5IK120GU-CF+5GU36K，5IK120GU-CF+5GU40K，5IK120GU-CF+5GU50K，5IK120GU-CF+5GU60K，5IK120GU-CF+5GU75K，5IK120GU-CF+5GU6K，5IK120GU-CF+5GU100K，5IK120GU-CF+5GU120K，5IK120GU-CF+5GU150K，5IK120GU-CF+5GU200K，5IK120GU-CF+5GU250K，5IK120GU-CF+5GU300K
120W调速电机型号汇总：
5IK120RGU-CF+5GU3K，5IK120RGU-CF+5GU5K，5IK120RGU-CF+5GU7.5K，5IK120RGU-CF+5GU9K，5IK120RGU-CF+5GU10K，5IK120RGU-CF+5GU12.5K，5IK120RGU-CF+5GU15K，5IK120RGU-CF+5GU18K，5IK120RGU-CF+5GU20K，5IK120RGU-CF+5GU25K，5IK120RGU-CF+5GU30K，5IK120RGU-CF+5GU36K，5IK120RGU-CF+5GU40K，5IK120RGU-CF+5GU50K，5IK120RGU-CF+5GU60K，5IK120RGU-CF+5GU75K，5IK120RGU-CF+5GU6K，5IK120RGU-CF+5GU100K，5IK120RGU-CF+5GU120K，5IK120RGU-CF+5GU150K，5IK120RGU-CF+5GU180K，5IK120RGU-CF+5GU200K，5IK120GU-CF+5GU250K
120W阻尼定速电机汇总：
5RK120GU-CF+5GU3K，5RK120GU-CF+5GU5K，5RK120GU-CF+5GU7.5K，5RK120GU-CF+5GU9K，5RK120GU-CF+5GU10K，5RK120GU-CF+5GU12.5K，5RK120GU-CF+5GU15K，5RK120GU-CF+5GU18K，5RK120GU-CF+5GU20K，5RK120GU-CF+5GU25K，5RK120GU-CF+5GU30K，5RK120GU-CF+5GU36K，5RK120GU-CF+5GU40K，5RK120GU-CF+5GU50K，5RK120GU-CF+5GU60K，5RK120GU-CF+5GU75K，5RK120GU-CF+5GU90K，5RK120GU-CF+5GU100K，5RK120GU-CF+5GU120K，5RK120GU-CF+5GU150K，5RK120GU-CF+5GU180K，5RK120GU-CF+5GU200K，5RK120GU-CF+5GU250K
120W阻尼调速电机型号汇总：
5RK120RGU-CF+5GU3K，5RK120RGU-CF+5GU5K，5RK120RGU-CF+5GU7.5K，5RK120RGU-CF+5GU9K，5RK120RGU-CF+5GU10K，5RK120RGU-CF+5GU12.5K，5RK120RGU-CF+5GU15K，5RK120RGU-CF+5GU18K，5RK120RGU-CF+5GU20K，5RK120RGU-CF+5GU25K，5RK120RGU-CF+5GU30K，5RK120RGU-CF+5GU36K，5RK120RGU-CF+5GU40K，5RK120RGU-CF+5GU50K，5RK120RGU-CF+5GU60K，5RK120RGU-CF+5GU75K，5RK120RGU-CF+5GU90K，5RK120RGU-CF+5GU100K，5RK120RGU-CF+5GU120K，5RK120RGU-CF+5GU180K，5RK120RGU-CF+5GU200K，5RK120RGU-CF+5GU250K，5RK120GU-CF+5GU300K
120W定速刹车型号汇总：
5IK120GU-CMF+5GU3K，5IK120GU-CMF+5GU5K，5IK120GU-CMF+5GU7.5K，5IK120GU-CMF+5GU9K，5IK120GU-CMF+5GU10K，5IK120GU-CMF+5GU12.5K，5IK120GU-CMF+5GU15K，5IK120GU-CMF+5GU18K，5IK120GU-CMF+5GU20K，5IK120GU-CMF+5GU25K，5IK120GU-CMF+5GU30K，5IK120GU-CMF+5GU36K，5IK120GU-CMF+5GU40K，5IK120GU-CMF+5GU50K，5IK120GU-CMF+5GU60K，5IK120GU-CMF+5GU75K，5IK120GU-CMF+5GU90K，5IK120GU-CMF+5GU100K，5IK120GU-CMF+5GU120K，5IK120GU-CMF+5GU150K，5IK120GU-CMF+5GU180K，5IK120GU-CMF+5GU200K，5IK120GU-CMF+5GU250K，
120W调速刹车型号汇总：
5IK120RGU-CMF+5GU3K，5IK120RGU-CMF+5GU5K，5IK 60RGN-CMF+5GU7.5K，5IK120RGU-CMF+5GU9K，5IK120RGU-CMF+5GU10K，5IK120RGU-CMF+5GU12.5K，5IK120RGU-CMF+5GU15K，5IK120RGU-CMF+5GU18K，5IK120RGU-CMF+5GU20K，5IK120RGU-CMF+5GU25K，5IK120RGU-CMF+5GU30K，5IK120RGU-CMF+5GU36K，5IK120RGU-CMF+5GU40K，5IK120RGU-CMF+5GU50K，5IK120RGU-CMF+5GU60K，5IK120RGU-CMF+5GU75K，5IK120RGU-CMF+5GU6K，5IK120RGU-CMF+5GU100K，5IK120RGU-CMF+5GU6K，5IK120RGU-CMF+5GU130K，5IK120RGU-CMF+5GU6K，5IK120RGU-CMF+5GU6K，5IK120RGU-CMF+5GU6K
120W三相220V减速电机型号汇总：
5IK120GU-SF+5GU3K，5IK120GU-SF+5GU5K，5IK120GU-SF+5GU7.5K，5IK120GU-SF+5GU9K，5IK120GU-SF+5GU10K，5IK120GU-SF+5GU12.5K，5IK120GU-SF+5GU15K，5IK120GU-SF+5GU18K，5IK120GU-SF+5GU20K，5IK120GU-SF+5GU25K，5IK120GU-SF+5GU30K，5IK120GU-SF+5GU36K，5IK120GU-SF+5GU40K，5IK120GU-SF+5GU50K，5IK120GU-SF+5GU60K，5IK120GU-SF+5GU75K，5IK120GU-SF+5GU90K，5IK120GU-SF+5GU100K，5IK120GU-SF+5GU120K，5IK120GU-SF+5GU150K，5IK120GU-SF+5GU180K，5IK120GU-SF+5GU200K，5IK120GU-SF+5GU250K
120W三相380V减速电机型号汇总：
5IK120GU-S3F+5GU3K，5IK120GU-S3F+5GU5K，5IK120GU-S3F+5GU7.5K，5IK120GU-S3F+5GU9K，5IK120GU-S3F+5GU10K，5IK120GU-S3F+5GU12.5K，5IK120GU-S3F+5GU15K，5IK120GU-S3F+5GU18K，5IK120GU-S3F+5GU20K，5IK120GU-S3F+5GU25K，5IK120GU-S3F+5GU30K，5IK120GU-S3F+5GU36K，5IK120GU-S3F+5GU40K，5IK120GU-S3F+5GU50K，5IK120GU-S3F+5GU60K，5IK120GU-S3F+5GU75K，5IK120GU-S3F+5GU90K，5IK120GU-S3F+5GU100K，5IK120GU-S3F+5GU120K，5IK120GU-S3F+5GU150K，5IK120GU-S3F+5GU180K，5IK120GU-S3F+5GU200K，5IK120GU-S3F+5GU250K
120W三相通用220V/380V减速电机型号汇总：
5IK120GU-YF+5GU3K，5IK120GU-YF+5GU5K，5IK120GU-YF+5GU7.5K，5IK120GU-YF+5GU9K，5IK120GU-YF+5GU10K，5IK120GU-YF+5GU12.5K，5IK120GU-YF+5GU15K，5IK120GU-YF+5GU18K，5IK120GU-YF+5GU20K，5IK120GU-YF+5GU25K，5IK120GU-YF+5GU30K，5IK120GU-YF+5GU36K，5IK120GU-YF+5GU40K，5IK120GU-YF+5GU50K，5IK120GU-YF+5GU60K，5IK120GU-YF+5GU75K，5IK120GU-YF+5GU90K，5IK120GU-YF+5GU100K，5IK120GU-YF+5GU120K，5IK120GU-YF+5GU150K，5IK120GU-YF+5GU180K，5IK120GU-YF+5GU200K，5IK120GU-YF+5GU250K
120W三相通用220V/380V减速电机型号汇总：
5IK120GU-S/S3F+5GU3K，5IK120GU-S/S3F+5GU5K，5IK120GU-S/S3F+5GU7.5K，5IK120GU-S/S3F+5GU9K，5IK120GU-S/S3F+5GU10K，5IK120GU-S/S3F+5GU12.5K，5IK120GU-S/S3F+5GU15K，5IK120GU-S/S3F+5GU18K，5IK120GU-S/S3F+5GU20K，5IK120GU-S/S3F+5GU25K，5IK120GU-S/S3F+5GU30K，5IK120GU-S/S3F+5GU36K，5IK120GU-S/S3F+5GU40K，5IK120GU-S/S3F+5GU50K，5IK120GU-S/S3F+5GU60K，5IK120GU-S/S3F+5GU75K，5IK120GU-S/S3F+5GU90K，5IK120GU-S/S3F+5GU100K，5IK120GU-S/S3F+5GU120K，5IK120GU-S/S3F+5GU150K，5IK120GU-S/S3F+5GU180K，5IK120GU-S/S3F+5GU200K，5IK120GU-S/S3F+5GU250K
120W三相220V刹车减速电机型号汇总：
5IK120GU-SMF+5GU3K，5IK120GU-SMF+5GU5K，5IK120GU-SMF+5GU7.5K，5IK120GU-SMF+5GU9K，5IK120GU-SMF+5GU10K，5IK120GU-SMF+5GU12.5K，5IK120GU-SMF+5GU15K，5IK120GU-SMF+5GU18K，5IK120GU-SMF+5GU20K，5IK120GU-SMF+5GU25K，5IK120GU-SMF+5GU30K，5IK120GU-SMF+5GU36K，5IK120GU-SMF+5GU40K，5IK120GU-SMF+5GU50K，5IK120GU-SMF+5GU60K，5IK120GU-SMF+5GU75K，5IK120GU-SMF+5GU6K，5IK120GU-SMF+5GU100K，5IK120GU-SMF+5GU6K，5IK120GU-SMF+5GU130K，5IK120GU-SMF+5GU6K，5IK120GU-SMF+5GU6K，5IK120GU-SMF+5GU6K
120W三相380V刹车减速电机型号汇总：
5IK120GU-S3MF+5GU3K，5IK120GU-S3MF+5GU5K，5IK120GU-S3MF+5GU7.5K，5IK120GU-S3MF+5GU9K，5IK120GU-S3MF+5GU10K，5IK120GU-S3MF+5GU12.5K，5IK120GU-S3MF+5GU15K，5IK120GU-S3MF+5GU18K，5IK120GU-S3MF+5GU20K，5IK120GU-S3MF+5GU25K，5IK120GU-S3MF+5GU30K，5IK120GU-S3MF+5GU36K，5IK120GU-S3MF+5GU40K，5IK120GU-S3MF+5GU50K，5IK120GU-S3MF+5GU60K，5IK120GU-S3MF+5GU75K，5IK120GU-S3MF+5GU90K，5IK120GU-S3MF+5GU100K，5IK120GU-S3MF+5GU120K，5IK120GU-S3MF+5GU150K，5IK120GU-S3MF+5GU180K，5IK120GU-S3MF+5GU200K，5IK120GU-S3MF+5GU250K
120W三相通用220V/380V刹车减速电机型号汇总：
5IK120GU-YMF+5GU3K，5IK120GU-YMF+5GU5K，5IK120GU-YMF+5GU7.5K，5IK120GU-YMF+5GU9K，5IK120GU-YMF+5GU10K，5IK120GU-YMF+5GU12.5K，5IK120GU-YMF+5GU15K，5IK120GU-YMF+5GU18K，5IK120GU-YMF+5GU20K，5IK120GU-YMF+5GU25K，5IK120GU-YMF+5GU30K，5IK120GU-YMF+5GU36K，5IK120GU-YMF+5GU40K，5IK120GU-YMF+5GU50K，5IK120GU-YMF+5GU60K，5IK120GU-YMF+5GU75K，5IK120GU-YMF+5GU90K，5IK120GU-YMF+5GU100K，5IK120GU-YMF+5GU120K，5IK120GU-YMF+5GU150K，5IK120GU-YMF+5GU180K，5IK120GU-YMF+5GU200K，5IK120GU-YMF+5GU250K
120W三相通用220V/380V刹车减速电机型号汇总：
5IK120GU-S/S3MF+5GU3K，5IK120GU-S/S3MF+5GU5K，5IK120GU-S/S3MF+5GU7.5K，
5IK120GU-S/S3MFF+5GU9K，5IK120GU-S/S3MF+5GU10K，5IK120GU-S/S3MF+5GU12.5K，5IK120GU-S/S3MF+5GU15K，5IK120GU-S/S3MF+5GU18K，5IK120GU-S/S3MF+5GU20K，5IK120GU-S/S3MF+5GU25K，5IK120GU-S/S3MF+5GU30K，5IK120GU-S/S3MF+5GU36K，5IK120GU-S/S3MF+5GU40K，5IK120GU-S/S3MF+5GU50K，5IK120GU-S/S3MF+5GU60K，5IK120GU-S/S3MF+5GU75K，5IK120GU-S/S3MF+5GU90K，5IK120GU-S/S3MF+5GU100K，5IK120GU-S/S3MF+5GU120K，5IK120GU-S/S3MF+5GU150K，5IK120GU-S/S3MF+5GU180K，5IK120GU-S/S3MF+5GU200K，5IK120GU-S/S3MF+5GU250K
