参数说明：
功率：60W (5IK60RGN-CF 5IK60GN-CF)        电压：单相110V/220V
电流：0.27A至4.7A                          频率：50Hz/60Hz
转速：1至2800 RPM 可减速可调速电机        减速比：1:3至1:750
转向:CW(正转)/CCW(反转)                    绝缘等级:B级
耐温:-10至130℃                            工作制:S1 S2 S3
防护等级:IP44（可定制IP55）                 噪音:50dB以下
安装方式：立式/卧式                         功能：无级调速，电磁刹车，正反转

电机特点：
优质纯铜线圈
40Cr合金钢齿轮高温氮化加硬
407硅钢片，铁损更低，磁通量更大
ADC12全铝制电机外壳
德国原装进口低温油脂
全铝制散热风扇
散热条使用定子线圈，电机工作时产生的热量更易散发
高速冲床定子
转子使用金属镶件加入模具，注入BMC材料加热至180℃高温成型
电机优点
超强扭矩    超低噪音     超长寿命     高可靠性
启动平稳    安装方便     节省空间     免维护
售后服务：
7天包退    15天包换    2年包修    5年维护
注意事项：
1.在电机出轴上安装连轴器或皮带轮等传动机构时，不可直接在出轴上以工具敲击安装。

2.与其他机器连接时，请先确认好旋转方向。
3.为避免安全隐患，请接地线使用。
4.带接线盒电机，请不要在接线盒盖打开的状态下运转电机。
5.安装接线时，请先确认好电压务必控制在额定范围内，以免因使用错误电压而导致电机线圈烧坏及触电。
6.请勿在通电状态下进行移动，安装，接线和检查作业。请切断电源后再进行作业，否则可能引起触电。

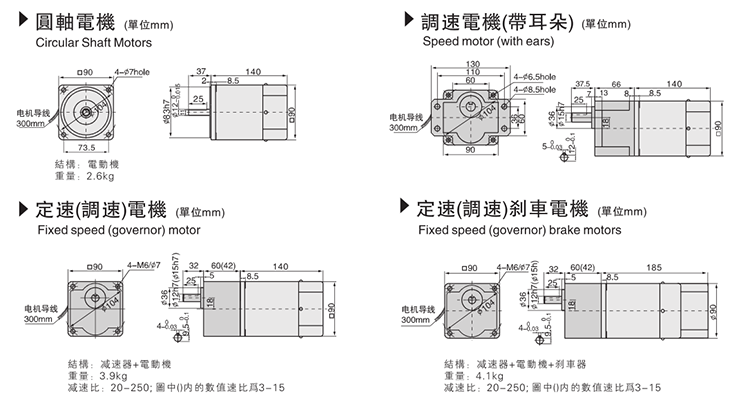

电机型号：

5IK60A-C	5RK60A-C	5IK60RGN-CF	5RK60GN-C
5IK60RA-C	5RK60RA-C	5IK60RGN-CF	5RK60RGN-CF

减速机型号：

5GN3K	5GN5K	5GN7.5K	5GN9K	5GN10K	5GN12.5K	5GN15K	5GN18K
5GN20K	5GN25K	5GN30K	5GN36K	5GN40K	5GN50K	5GN60K	5GN75K
5GN90K	5GN100K	5GN120K	5GN150K	5GN180K	5GN200K	5GN250K	5GN300K





应用范围：

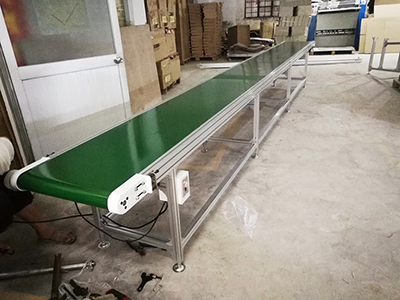

输送带，流水线，磁性分离器,传送带,巴氏灭菌机,包装印刷机,玻璃反应釜,剥皮机,剥线机,贴片机,口罩机，防护服设备等自动化

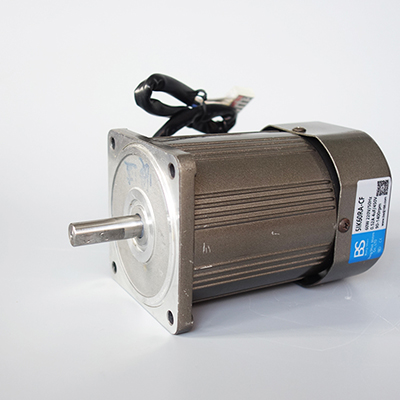

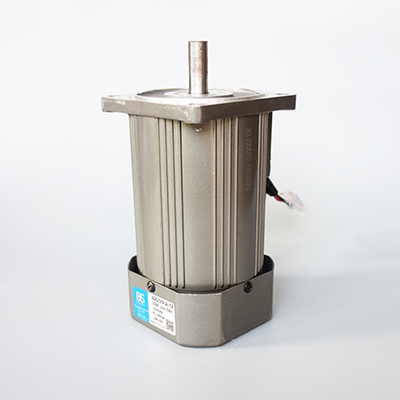

60W光轴电机型号汇总
5IK60A-AF，5IK60A-CF，5IK60A-SF，5IK60A-S3F，5IK60A-D，5IK60A-T，5IK60A-T3，5IK60RA-CF，5IK60A-CMF，5IK60RA-CMF，5IK60GN-AF，5IK60GN-CF，5IK60RGN-CF，5IK60GN-CMF，5IK60RGN-CMF，5RK60GN-CF，5RK6RN-CF，5RK60GN-AF，5RK6RN-AF，5IK60GN-SF
5IK60GN-S3F，5IK60GN-YF，5IK60GN-SMF，5IK60GN-S3MF，5IK60GN-YMF，

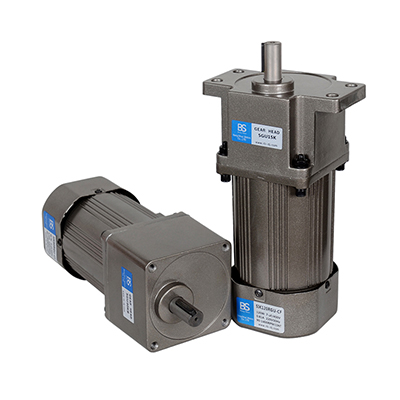

60W减速电机型号汇总：
5IK60GN-CF+5GN3K，5IK60GN-CF+5GN5K，5IK60GN-CF+5GN7.5K，5IK60GN-CF+5GN9K，5IK60GN-CF+5GN10K，5IK60GN-CF+5GN12.5K，5IK60GN-CF+5GN15K，5IK60GN-CF+5GN18K，5IK60GN-CF+5GN20K，5IK60GN-CF+5GN25K，5IK60GN-CF+5GN30K，5IK60GN-CF+5GN36K，5IK60GN-CF+5GN40K，5IK60GN-CF+5GN50K，5IK60GN-CF+5GN60K，5IK60GN-CF+5GN75K，5IK60GN-CF+5GN6K，5IK60GN-CF+5GN100K，5IK60GN-CF+5GN120K，5IK60GN-CF+5GN150K，5IK60GN-CF+5GN200K，5IK60GN-CF+5GN250K，5IK60GN-CF+5GN300K
60W调速电机型号汇总：
5IK60RGN-CF+5GN3K，5IK60RGN-CF+5GN5K，5IK60RGN-CF+5GN7.5K，5IK60RGN-CF+5GN9K，5IK60RGN-CF+5GN10K，5IK60RGN-CF+5GN12.5K，5IK60RGN-CF+5GN15K，5IK60RGN-CF+5GN18K，5IK60RGN-CF+5GN20K，5IK60RGN-CF+5GN25K，5IK60RGN-CF+5GN30K，5IK60RGN-CF+5GN36K，5IK60RGN-CF+5GN40K，5IK60RGN-CF+5GN50K，5IK60RGN-CF+5GN60K，5IK60RGN-CF+5GN75K，5IK60RGN-CF+5GN6K，5IK60RGN-CF+5GN100K，5IK60RGN-CF+5GN120K，5IK60RGN-CF+5GN150K，5IK60RGN-CF+5GN180K，5IK60RGN-CF+5GN200K，5IK60GN-CF+5GN250K
60W阻尼定速电机汇总：
5RK60GN-CF+5GN3K，5RK60GN-CF+5GN5K，5RK60GN-CF+5GN7.5K，5RK60GN-CF+5GN9K，5RK60GN-CF+5GN10K，5RK60GN-CF+5GN12.5K，5RK60GN-CF+5GN15K，5RK60GN-CF+5GN18K，5RK60GN-CF+5GN20K，5RK60GN-CF+5GN25K，5RK60GN-CF+5GN30K，5RK60GN-CF+5GN36K，5RK60GN-CF+5GN40K，5RK60GN-CF+5GN50K，5RK60GN-CF+5GN60K，5RK60GN-CF+5GN75K，5RK60GN-CF+5GN90K，5RK60GN-CF+5GN100K，5RK60GN-CF+5GN120K，5RK60GN-CF+5GN150K，5RK60GN-CF+5GN180K，5RK60GN-CF+5GN200K，5RK60GN-CF+5GN250K
60W阻尼调速电机型号汇总：
5RK60RGN-CF+5GN3K，5RK60RGN-CF+5GN5K，5RK60RGN-CF+5GN7.5K，5RK60RGN-CF+5GN9K，5RK60RGN-CF+5GN10K，5RK60RGN-CF+5GN12.5K，5RK60RGN-CF+5GN15K，5RK60RGN-CF+5GN18K，5RK60RGN-CF+5GN20K，5RK60RGN-CF+5GN25K，5RK60RGN-CF+5GN30K，5RK60RGN-CF+5GN36K，5RK60RGN-CF+5GN40K，5RK60RGN-CF+5GN50K，5RK60RGN-CF+5GN60K，5RK60RGN-CF+5GN75K，5RK60RGN-CF+5GN90K，5RK60RGN-CF+5GN100K，5RK60RGN-CF+5GN120K，5RK60RGN-CF+5GN180K，5RK60RGN-CF+5GN200K，5RK60RGN-CF+5GN250K，5RK60GN-CF+5GN300K
60W定速刹车型号汇总：
5IK60GN-CMF+5GN3K，5IK60GN-CMF+5GN5K，5IK60GN-CMF+5GN7.5K，5IK60GN-CMF+5GN9K，5IK60GN-CMF+5GN10K，5IK60GN-CMF+5GN12.5K，5IK60GN-CMF+5GN15K，5IK60GN-CMF+5GN18K，5IK60GN-CMF+5GN20K，5IK60GN-CMF+5GN25K，5IK60GN-CMF+5GN30K，5IK60GN-CMF+5GN36K，5IK60GN-CMF+5GN40K，5IK60GN-CMF+5GN50K，5IK60GN-CMF+5GN60K，5IK60GN-CMF+5GN75K，5IK60GN-CMF+5GN90K，5IK60GN-CMF+5GN100K，5IK60GN-CMF+5GN120K，5IK60GN-CMF+5GN150K，5IK60GN-CMF+5GN180K，5IK60GN-CMF+5GN200K，5IK60GN-CMF+5GN250K，
60W调速刹车型号汇总：
5IK60RGN-CMF+5GN3K，5IK60RGN-CMF+5GN5K，5IK 60RGN-CMF+5GN7.5K，5IK60RGN-CMF+5GN9K，5IK60RGN-CMF+5GN10K，5IK60RGN-CMF+5GN12.5K，5IK60RGN-CMF+5GN15K，5IK60RGN-CMF+5GN18K，5IK60RGN-CMF+5GN20K，5IK60RGN-CMF+5GN25K，5IK60RGN-CMF+5GN30K，5IK60RGN-CMF+5GN36K，5IK60RGN-CMF+5GN40K，5IK60RGN-CMF+5GN50K，5IK60RGN-CMF+5GN60K，5IK60RGN-CMF+5GN75K，5IK60RGN-CMF+5GN6K，5IK60RGN-CMF+5GN100K，5IK60RGN-CMF+5GN6K，5IK60RGN-CMF+5GN130K，5IK60RGN-CMF+5GN6K，5IK60RGN-CMF+5GN6K，5IK60RGN-CMF+5GN6K
60W三相220V减速电机型号汇总：
5IK60GN-SF+5GN3K，5IK60GN-SF+5GN5K，5IK60GN-SF+5GN7.5K，5IK60GN-SF+5GN9K，5IK60GN-SF+5GN10K，5IK60GN-SF+5GN12.5K，5IK60GN-SF+5GN15K，5IK60GN-SF+5GN18K，5IK60GN-SF+5GN20K，5IK60GN-SF+5GN25K，5IK60GN-SF+5GN30K，5IK60GN-SF+5GN36K，5IK60GN-SF+5GN40K，5IK60GN-SF+5GN50K，5IK60GN-SF+5GN60K，5IK60GN-SF+5GN75K，5IK60GN-SF+5GN90K，5IK60GN-SF+5GN100K，5IK60GN-SF+5GN120K，5IK60GN-SF+5GN150K，5IK60GN-SF+5GN180K，5IK60GN-SF+5GN200K，5IK60GN-SF+5GN250K
60W三相380V减速电机型号汇总：
5IK60GN-S3F+5GN3K，5IK60GN-S3F+5GN5K，5IK60GN-S3F+5GN7.5K，5IK60GN-S3F+5GN9K，5IK60GN-S3F+5GN10K，5IK60GN-S3F+5GN12.5K，5IK60GN-S3F+5GN15K，5IK60GN-S3F+5GN18K，5IK60GN-S3F+5GN20K，5IK60GN-S3F+5GN25K，5IK60GN-S3F+5GN30K，5IK60GN-S3F+5GN36K，5IK60GN-S3F+5GN40K，5IK60GN-S3F+5GN50K，5IK60GN-S3F+5GN60K，5IK60GN-S3F+5GN75K，5IK60GN-S3F+5GN90K，5IK60GN-S3F+5GN100K，5IK60GN-S3F+5GN120K，5IK60GN-S3F+5GN150K，5IK60GN-S3F+5GN180K，5IK60GN-S3F+5GN200K，5IK60GN-S3F+5GN250K
60W三相通用220V/380V减速电机型号汇总：
5IK60GN-YF+5GN3K，5IK60GN-YF+5GN5K，5IK60GN-YF+5GN7.5K，5IK60GN-YF+5GN9K，5IK60GN-YF+5GN10K，5IK60GN-YF+5GN12.5K，5IK60GN-YF+5GN15K，5IK60GN-YF+5GN18K，5IK60GN-YF+5GN20K，5IK60GN-YF+5GN25K，5IK60GN-YF+5GN30K，5IK60GN-YF+5GN36K，5IK60GN-YF+5GN40K，5IK60GN-YF+5GN50K，5IK60GN-YF+5GN60K，5IK60GN-YF+5GN75K，5IK60GN-YF+5GN90K，5IK60GN-YF+5GN100K，5IK60GN-YF+5GN120K，5IK60GN-YF+5GN150K，5IK60GN-YF+5GN180K，5IK60GN-YF+5GN200K，5IK60GN-YF+5GN250K
60W三相通用220V/380V减速电机型号汇总：
5IK60GN-S/S3F+5GN3K，5IK60GN-S/S3F+5GN5K，5IK60GN-S/S3F+5GN7.5K，5IK60GN-S/S3F+5GN9K，5IK60GN-S/S3F+5GN10K，5IK60GN-S/S3F+5GN12.5K，5IK60GN-S/S3F+5GN15K，5IK60GN-S/S3F+5GN18K，5IK60GN-S/S3F+5GN20K，5IK60GN-S/S3F+5GN25K，5IK60GN-S/S3F+5GN30K，5IK60GN-S/S3F+5GN36K，5IK60GN-S/S3F+5GN40K，5IK60GN-S/S3F+5GN50K，5IK60GN-S/S3F+5GN60K，5IK60GN-S/S3F+5GN75K，5IK60GN-S/S3F+5GN90K，5IK60GN-S/S3F+5GN100K，5IK60GN-S/S3F+5GN120K，5IK60GN-S/S3F+5GN150K，5IK60GN-S/S3F+5GN180K，5IK60GN-S/S3F+5GN200K，5IK60GN-S/S3F+5GN250K
60W三相220V刹车减速电机型号汇总：
5IK60GN-SMF+5GN3K，5IK60GN-SMF+5GN5K，5IK60GN-SMF+5GN7.5K，5IK60GN-SMF+5GN9K，5IK60GN-SMF+5GN10K，5IK60GN-SMF+5GN12.5K，5IK60GN-SMF+5GN15K，5IK60GN-SMF+5GN18K，5IK60GN-SMF+5GN20K，5IK60GN-SMF+5GN25K，5IK60GN-SMF+5GN30K，5IK60GN-SMF+5GN36K，5IK60GN-SMF+5GN40K，5IK60GN-SMF+5GN50K，5IK60GN-SMF+5GN60K，5IK60GN-SMF+5GN75K，5IK60GN-SMF+5GN6K，5IK60GN-SMF+5GN100K，5IK60GN-SMF+5GN6K，5IK60GN-SMF+5GN130K，5IK60GN-SMF+5GN6K，5IK60GN-SMF+5GN6K，5IK60GN-SMF+5GN6K
60W三相380V刹车减速电机型号汇总：
5IK60GN-S3MF+5GN3K，5IK60GN-S3MF+5GN5K，5IK60GN-S3MF+5GN7.5K，5IK60GN-S3MF+5GN9K，5IK60GN-S3MF+5GN10K，5IK60GN-S3MF+5GN12.5K，5IK60GN-S3MF+5GN15K，5IK60GN-S3MF+5GN18K，5IK60GN-S3MF+5GN20K，5IK60GN-S3MF+5GN25K，5IK60GN-S3MF+5GN30K，5IK60GN-S3MF+5GN36K，5IK60GN-S3MF+5GN40K，5IK60GN-S3MF+5GN50K，5IK60GN-S3MF+5GN60K，5IK60GN-S3MF+5GN75K，5IK60GN-S3MF+5GN90K，5IK60GN-S3MF+5GN100K，5IK60GN-S3MF+5GN120K，5IK60GN-S3MF+5GN150K，5IK60GN-S3MF+5GN180K，5IK60GN-S3MF+5GN200K，5IK60GN-S3MF+5GN250K
60W三相通用220V/380V刹车减速电机型号汇总：
5IK60GN-YMF+5GN3K，5IK60GN-YMF+5GN5K，5IK60GN-YMF+5GN7.5K，5IK60GN-YMF+5GN9K，5IK60GN-YMF+5GN10K，5IK60GN-YMF+5GN12.5K，5IK60GN-YMF+5GN15K，5IK60GN-YMF+5GN18K，5IK60GN-YMF+5GN20K，5IK60GN-YMF+5GN25K，5IK60GN-YMF+5GN30K，5IK60GN-YMF+5GN36K，5IK60GN-YMF+5GN40K，5IK60GN-YMF+5GN50K，5IK60GN-YMF+5GN60K，5IK60GN-YMF+5GN75K，5IK60GN-YMF+5GN90K，5IK60GN-YMF+5GN100K，5IK60GN-YMF+5GN120K，5IK60GN-YMF+5GN150K，5IK60GN-YMF+5GN180K，5IK60GN-YMF+5GN200K，5IK60GN-YMF+5GN250K
60W三相通用220V/380V刹车减速电机型号汇总：
5IK60GN-S/S3MF+5GN3K，5IK60GN-S/S3MF+5GN5K，5IK60GN-S/S3MF+5GN7.5K，
5IK60GN-S/S3MFF+5GN9K，5IK60GN-S/S3MF+5GN10K，5IK60GN-S/S3MF+5GN12.5K，5IK60GN-S/S3MF+5GN15K，5IK60GN-S/S3MF+5GN18K，5IK60GN-S/S3MF+5GN20K，5IK60GN-S/S3MF+5GN25K，5IK60GN-S/S3MF+5GN30K，5IK60GN-S/S3MF+5GN36K，5IK60GN-S/S3MF+5GN40K，5IK60GN-S/S3MF+5GN50K，5IK60GN-S/S3MF+5GN60K，5IK60GN-S/S3MF+5GN75K，5IK60GN-S/S3MF+5GN90K，5IK60GN-S/S3MF+5GN100K，5IK60GN-S/S3MF+5GN120K，5IK60GN-S/S3MF+5GN150K，5IK60GN-S/S3MF+5GN180K，5IK60GN-S/S3MF+5GN200K，5IK60GN-S/S3MF+5GN250K
